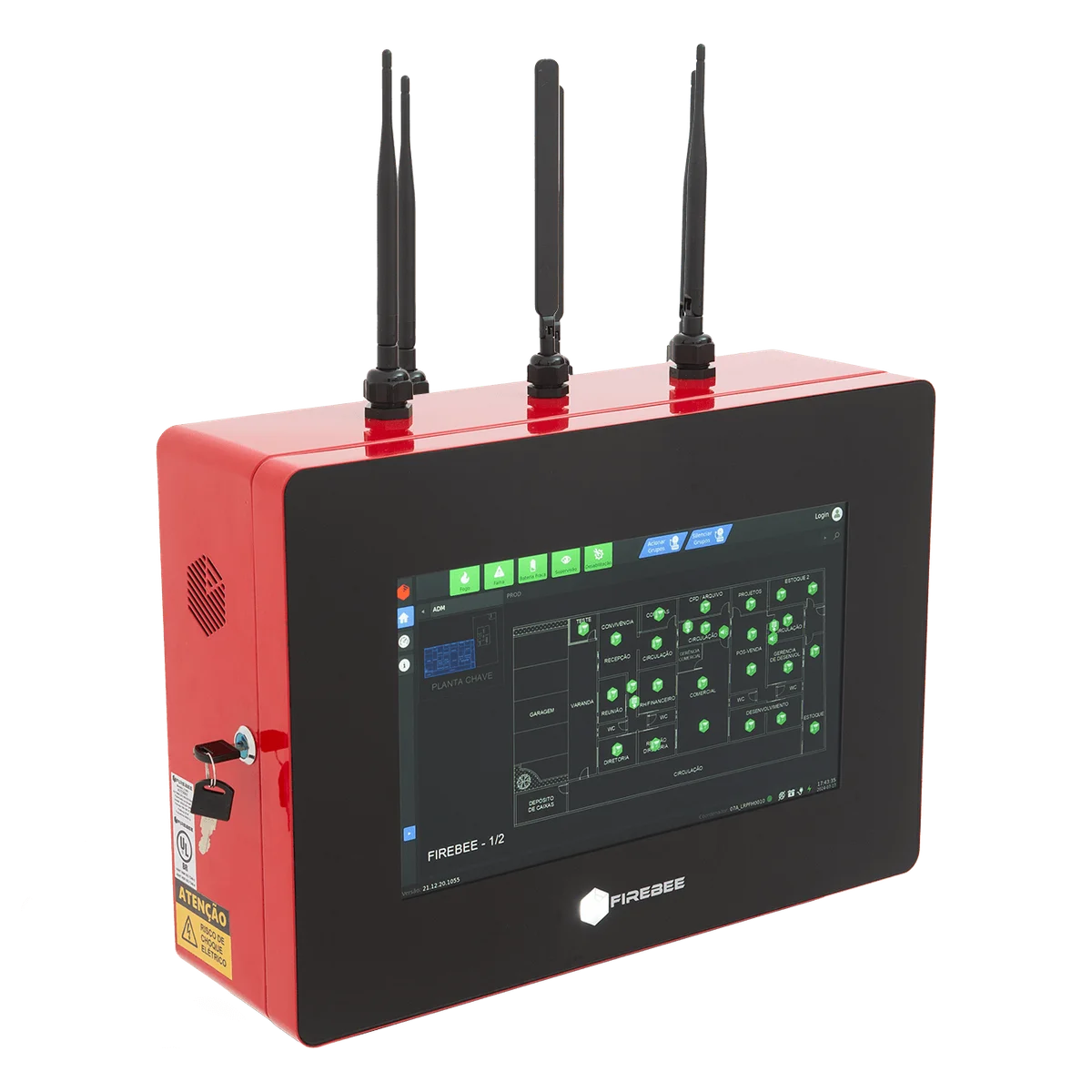

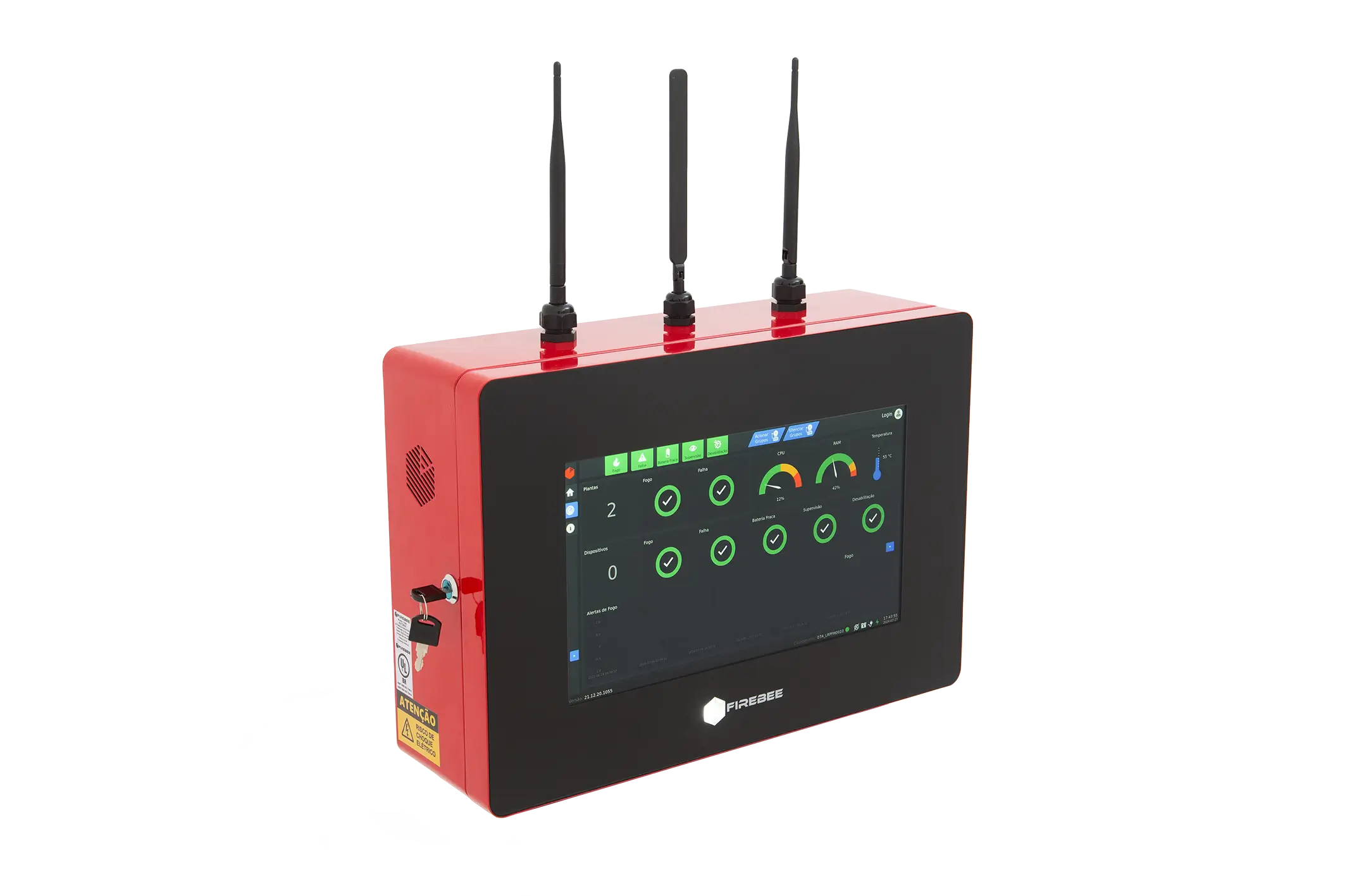

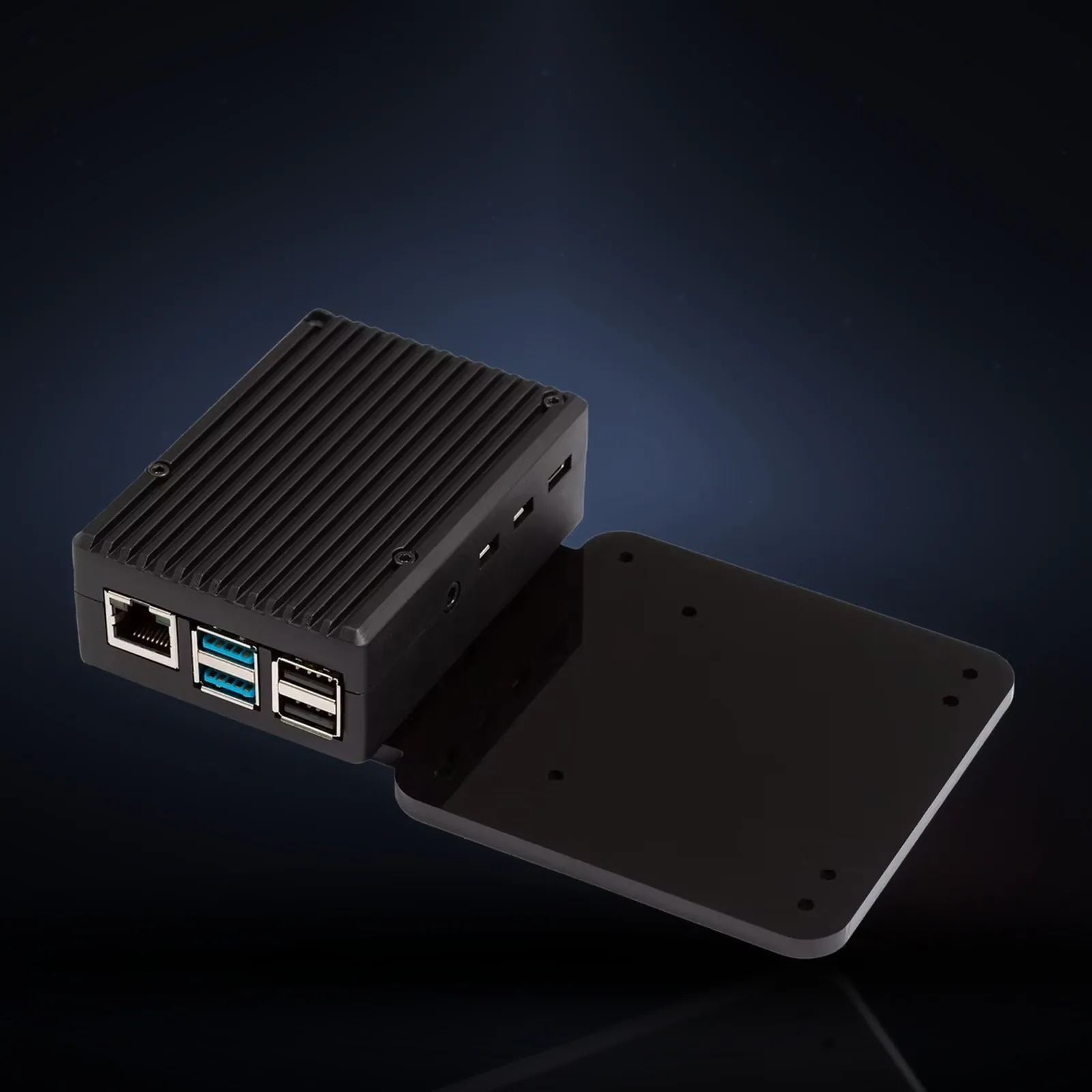

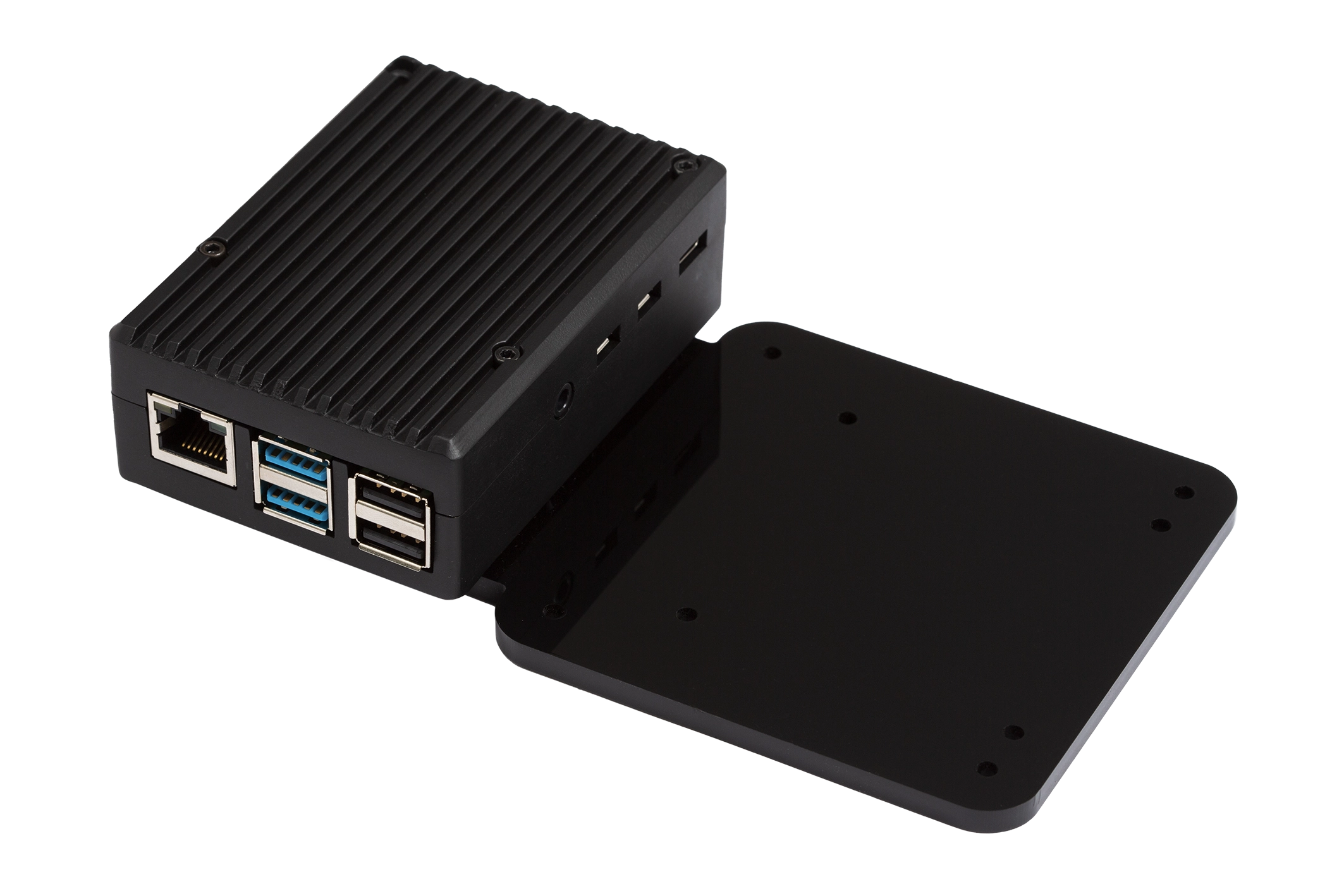

FHT Panel Supervisor Module

MirrorBox module for replication and supervision of FHT panels at multiple points. Solution aimed at environments where it is necessary to remotely monitor the state of the central in strategic locations — such as security rooms, concierge, fire brigade — without duplicating the entire structure of the original central.

Device Power Supply Data

Mirrorbox — replicates in real time all information and signals of the linked FHT central.

Device Communication Data

:: Coverage Distances

Network Topology: Mesh

Line-of-sight range: 1500 m (1.5km)

Range with obstacles: 50 - 1500 m - Follow calculation rules for projects

Industrial Safety and Topology: ✅

Network with Point Redundancy: ✅

Network Shadowing Rule: ✅

Network with Clustering Mode: ✅

Wi-Fi Protocol: No

Suffers Wi-Fi interference?: No

:: Network Characteristics

Operating Frequency:

Band Type: ISM (Industrial Scientific and Medical)

Signal Modulation: O-QPSK

Channels: 11 to 26 (24 to 26 dedicated)

Antenna Gain: 5dBi

Transfer Rate: 256 Kbps

:: Data Security

Data Encryption: 128 bits

Encryption Mode: CCM mode (counter with cipher block chaining message authentication code; counter with CBC-MAC)

Device binding by MAC Address: ✅

Dedicated recording key: ✅

Unique addressing rule compliance: ✅

:: 12x greater range compared to previous generation (WB) - From 120 to 1500 meters
