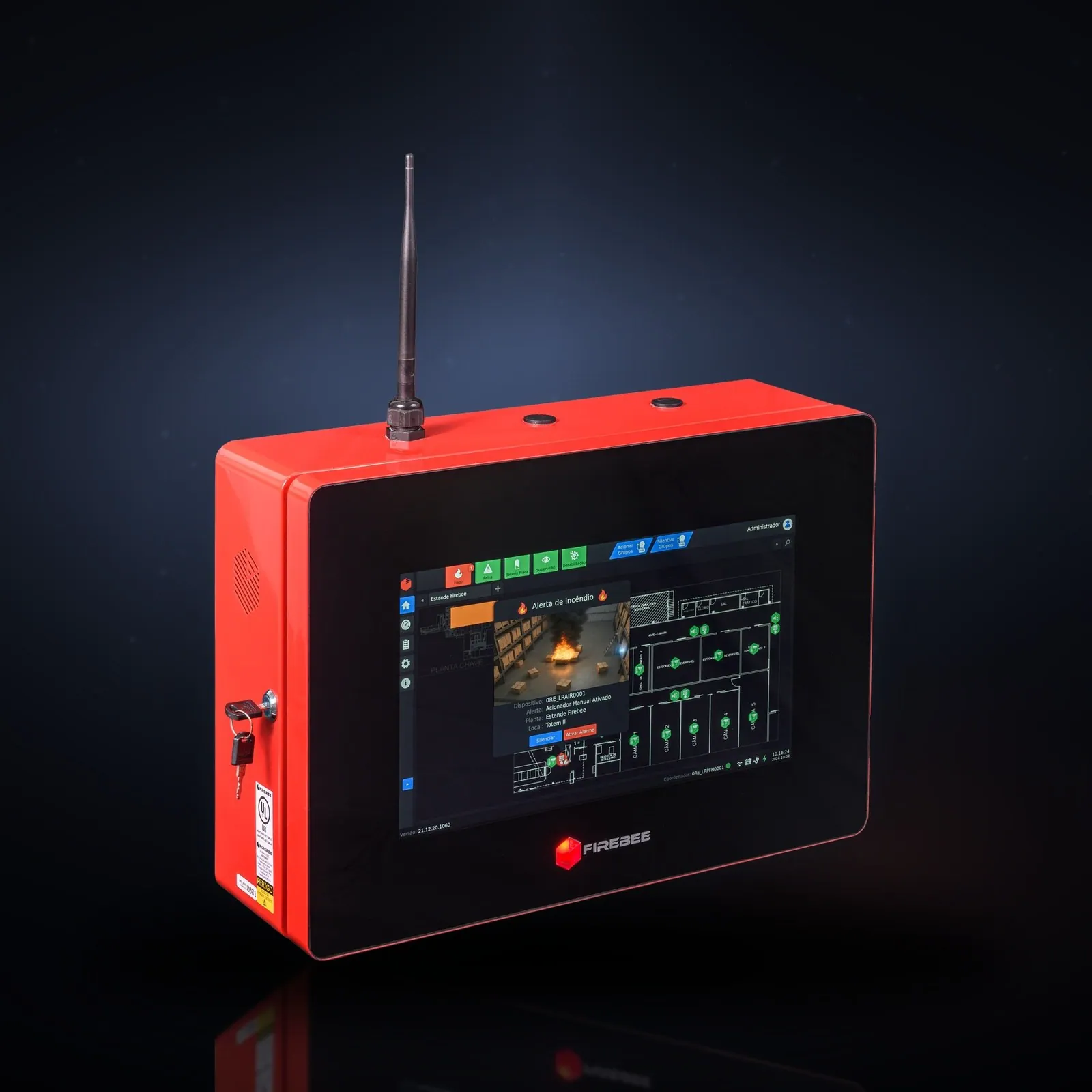

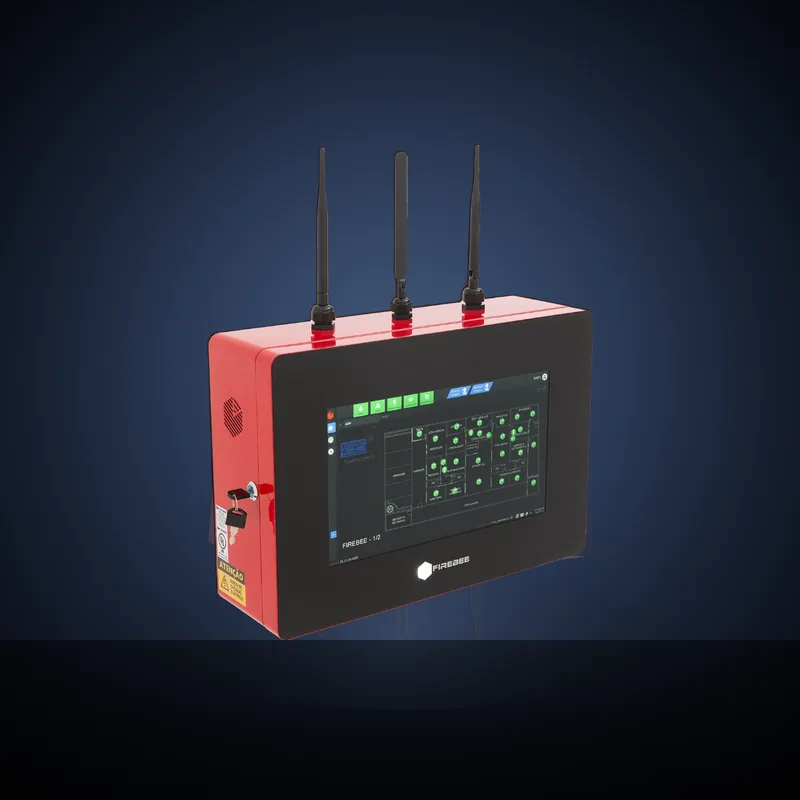

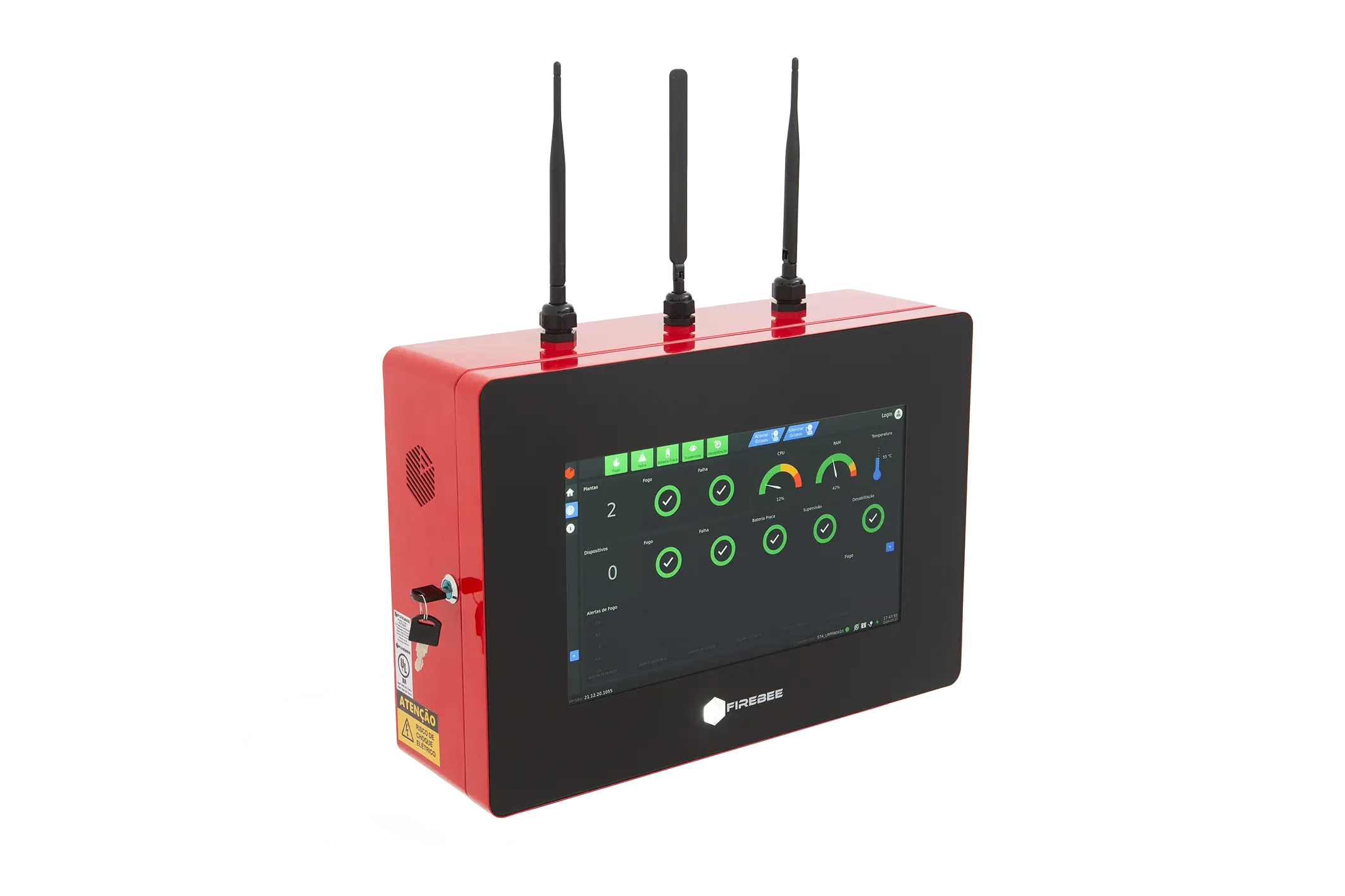

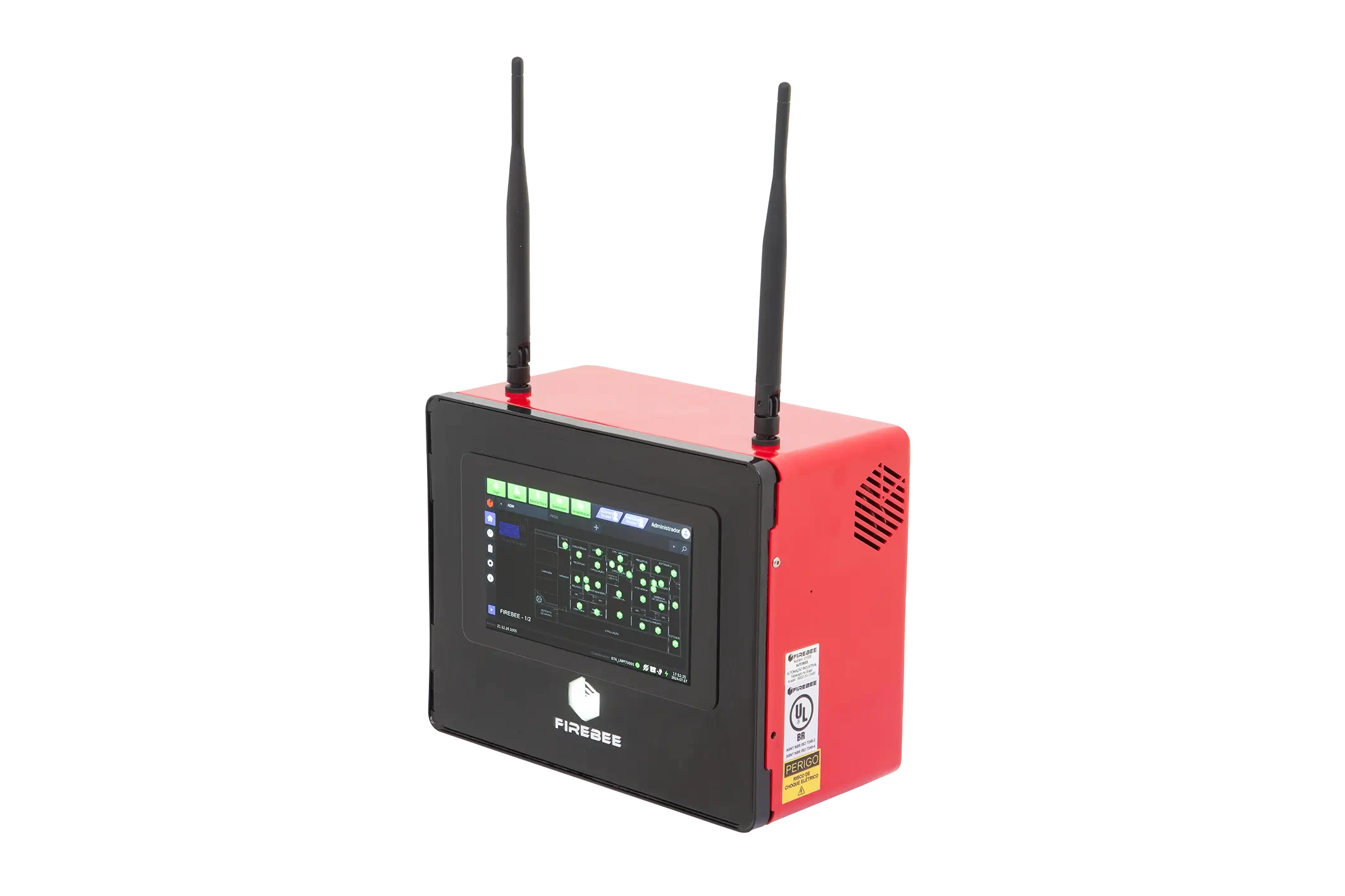

FHT15 — 15" Touch Wireless Panel

The FHT panel line continues the innovation and safety concepts of the CL line that have served the wireless SDAI market for over a decade.

Some features of the FHT's

Native Modbus communication for SCADA integration's

Native redundancy system for Fail-Safe even with panel loss, restoring the system in seconds.

GPRS communication with dedicated module for secure data access without impacting local network and in situations where data access is difficult.

Device Power Supply Data

:: Electrical Characteristics

Input Voltage: 120 ~ 240 VAC

Minimum Electrical Power: 18W

Maximum Electrical Power: 35 W

Maximum Electrical Current: 0.35 Amps

:: Backup Power Supply

Batteries: 02 units of 12V / 12 Ah

Autonomy: 28 hours (857 mA)

Average battery life: 24 months

:: Technical Specifications

Device Communication Data

:: Coverage Distances

Network Topology: Mesh

Line-of-sight range: 1500 m (1.5km)

Range with obstacles: 50 - 1500 m - Follow calculation rules for projects

Industrial Safety and Topology: ✅

Network with Point Redundancy: ✅

Network Shadowing Rule: ✅

Network with Clustering Mode: ✅

Wi-Fi Protocol: No

Suffers Wi-Fi interference?: No

:: Network Characteristics

Operating Frequency:

Band Type: ISM (Industrial Scientific and Medical)

Signal Modulation: O-QPSK

Channels: 11 to 26 (24 to 26 dedicated)

Antenna Gain: 5dBi

Transfer Rate: 256 Kbps

:: Data Security

Data Encryption: 128 bits

Encryption Mode: CCM mode (counter with cipher block chaining message authentication code; counter with CBC-MAC)

Device binding by MAC Address: ✅

Dedicated recording key: ✅

Unique addressing rule compliance: ✅

:: 12x greater range compared to previous generation (WB) - From 120 to 1500 meters
