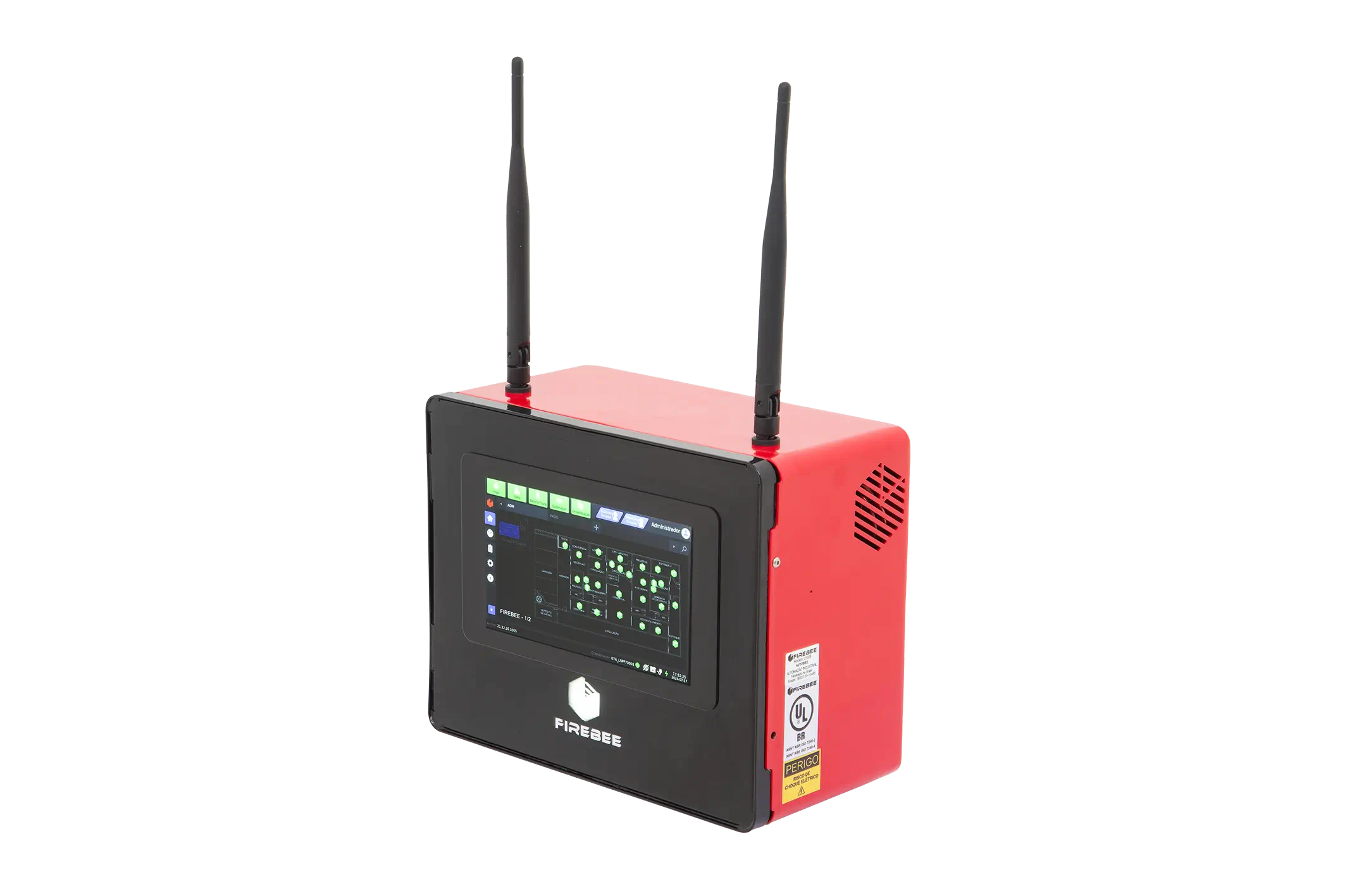

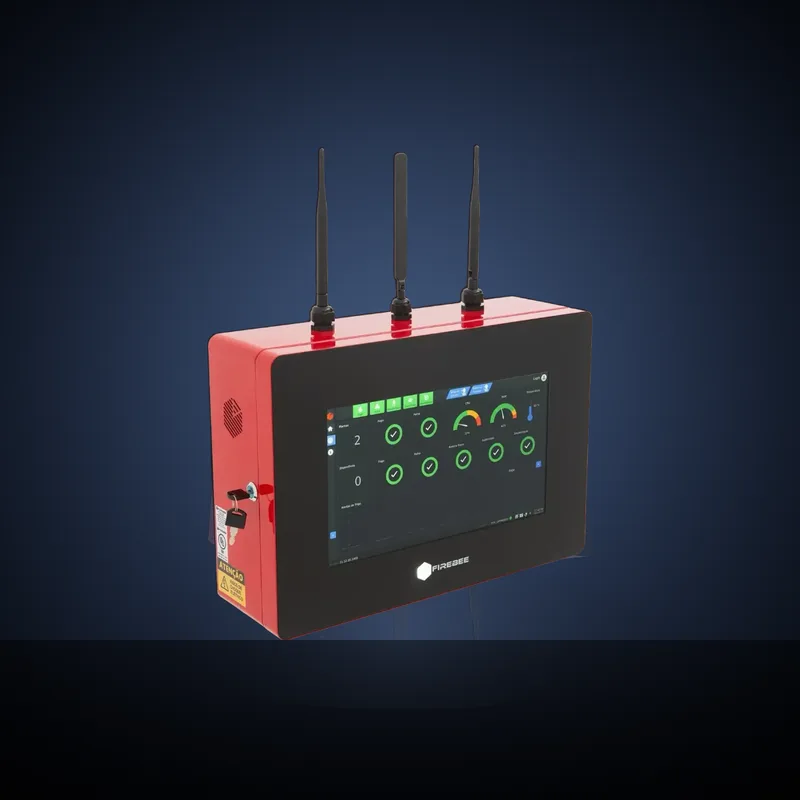

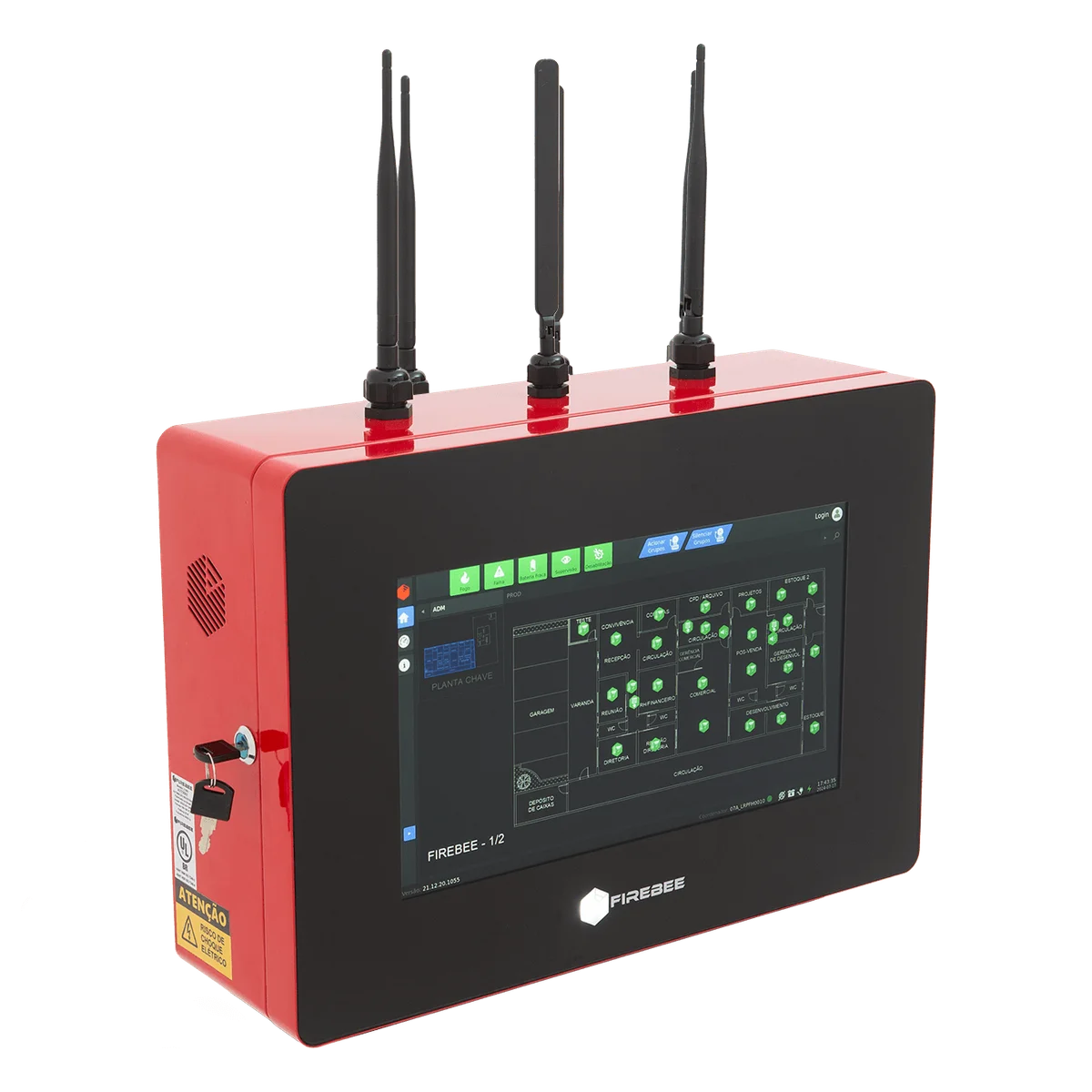

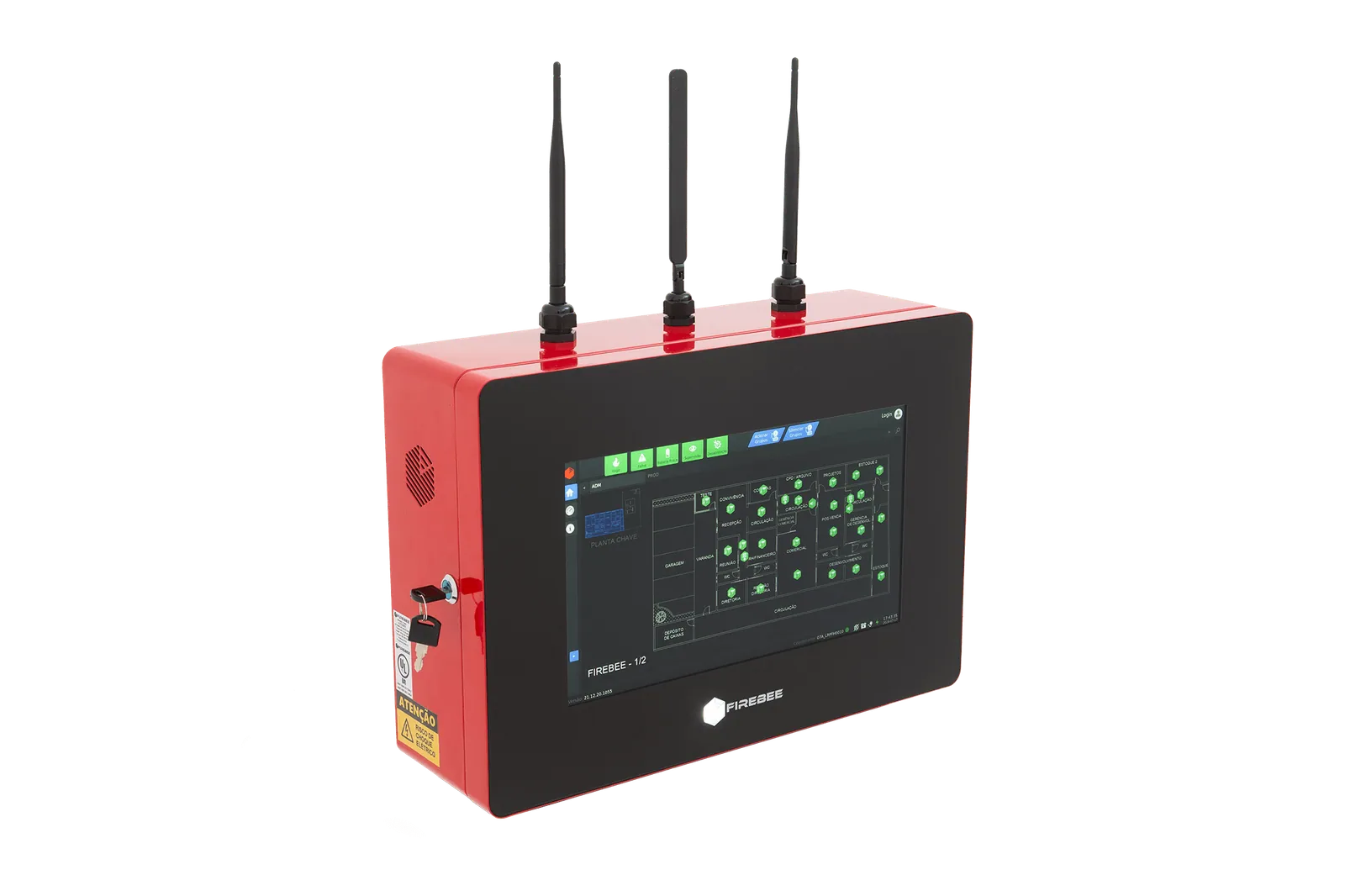

FHT15 — 15" Touch Wireless Panel (SubRede)
SubNet variant of FHT15 — network segmentation for large plants
About this model
The FHT subnetwork central was created exactly for environments where there is a need for network compartmentalization within the same physical structure.
Example: A location where the SDAI needs to be divided into two physically distinct networks, with completely separate addressing and security.
Device Power Supply Data
:: Electrical Characteristics
Input Voltage: 120 ~ 240 VAC
Minimum Electrical Power: 18W
Maximum Electrical Power: 35 W
Maximum Electrical Current: 0.35 Amps
:: Backup Power Supply
Batteries: 02 units of 12V / 12 Ah
Autonomy: 28 hours (857 mA)
Average battery life: 24 months
Device Communication Data
:: Coverage Distances
Network Topology: Mesh
Line-of-sight range: 1500 m (1.5km)
Range with obstacles: 50 - 1500 m - Follow calculation rules for projects
Industrial Safety and Topology: ✅
Network with Point Redundancy: ✅
Network Shadowing Rule: ✅
Network with Clustering Mode: ✅
Wi-Fi Protocol: No
Suffers Wi-Fi interference?: No
:: Network Characteristics
Operating Frequency:
Band Type: ISM (Industrial Scientific and Medical)
Signal Modulation: O-QPSK
Channels: 11 to 26 (24 to 26 dedicated)
Antenna Gain: 5dBi
Transfer Rate: 256 Kbps
:: Data Security
Data Encryption: 128 bits
Encryption Mode: CCM mode (counter with cipher block chaining message authentication code; counter with CBC-MAC)
Device binding by MAC Address: ✅
Dedicated recording key: ✅
Unique addressing rule compliance: ✅
:: 12x greater range compared to previous generation (WB) - From 120 to 1500 meters
