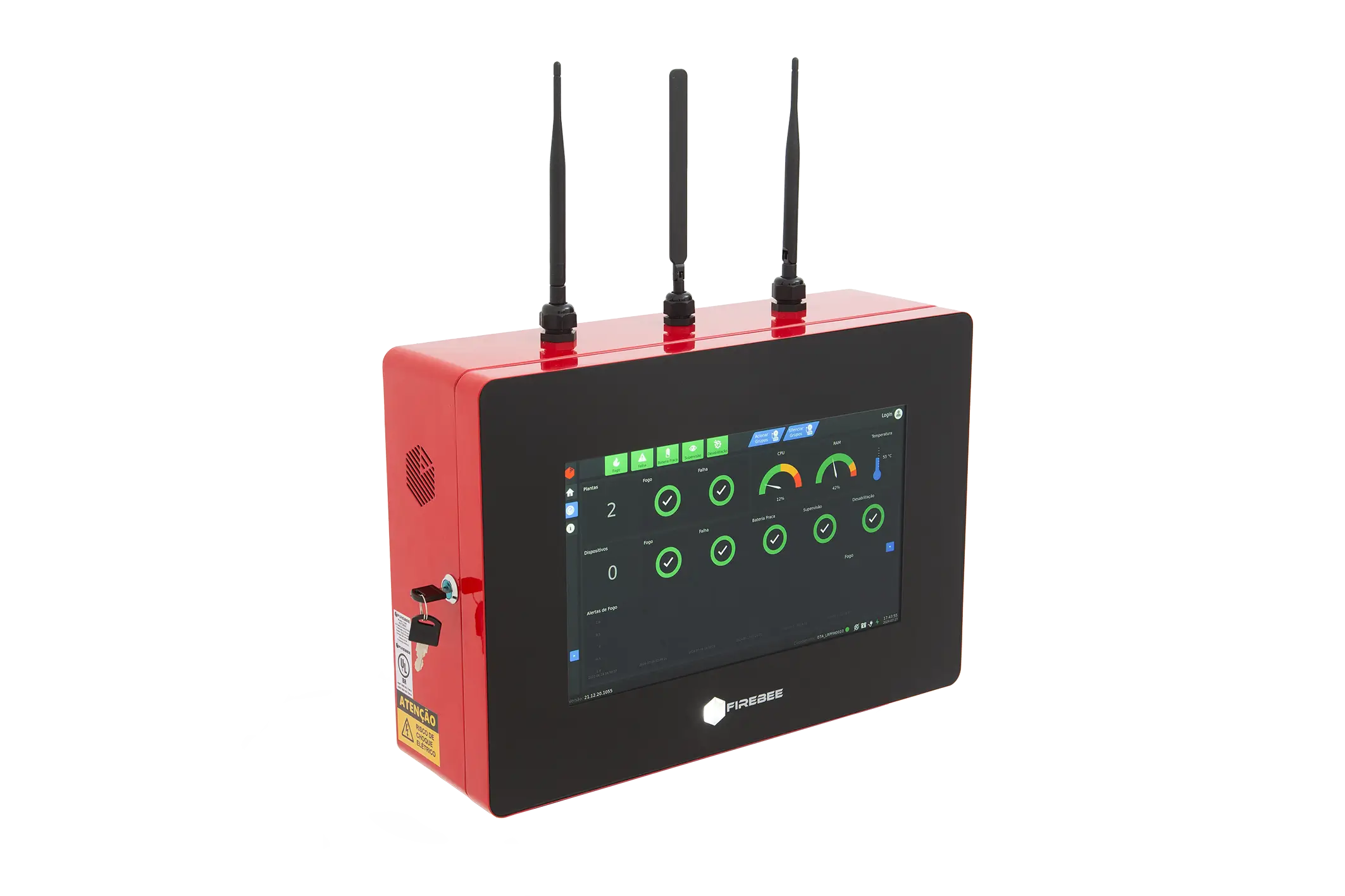

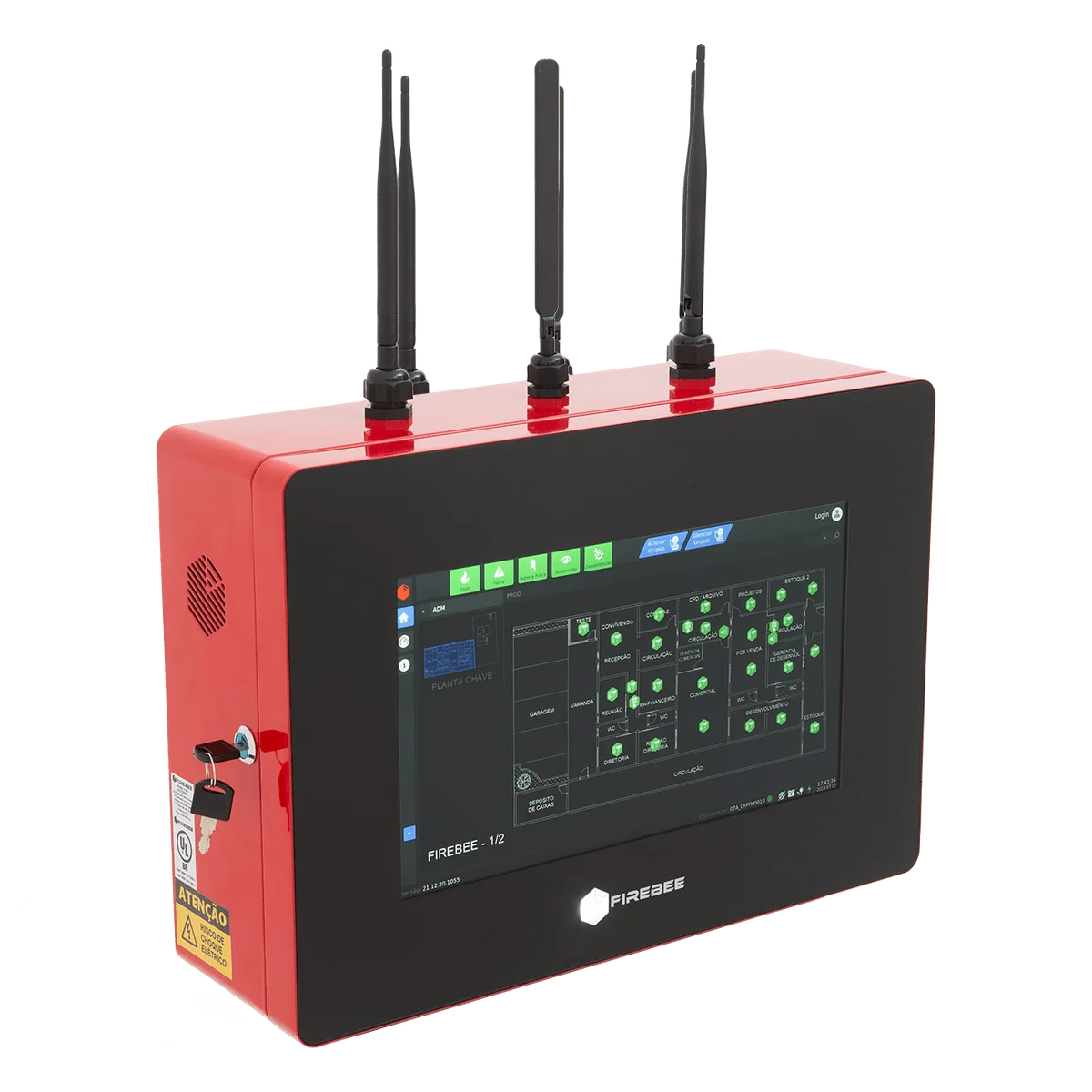

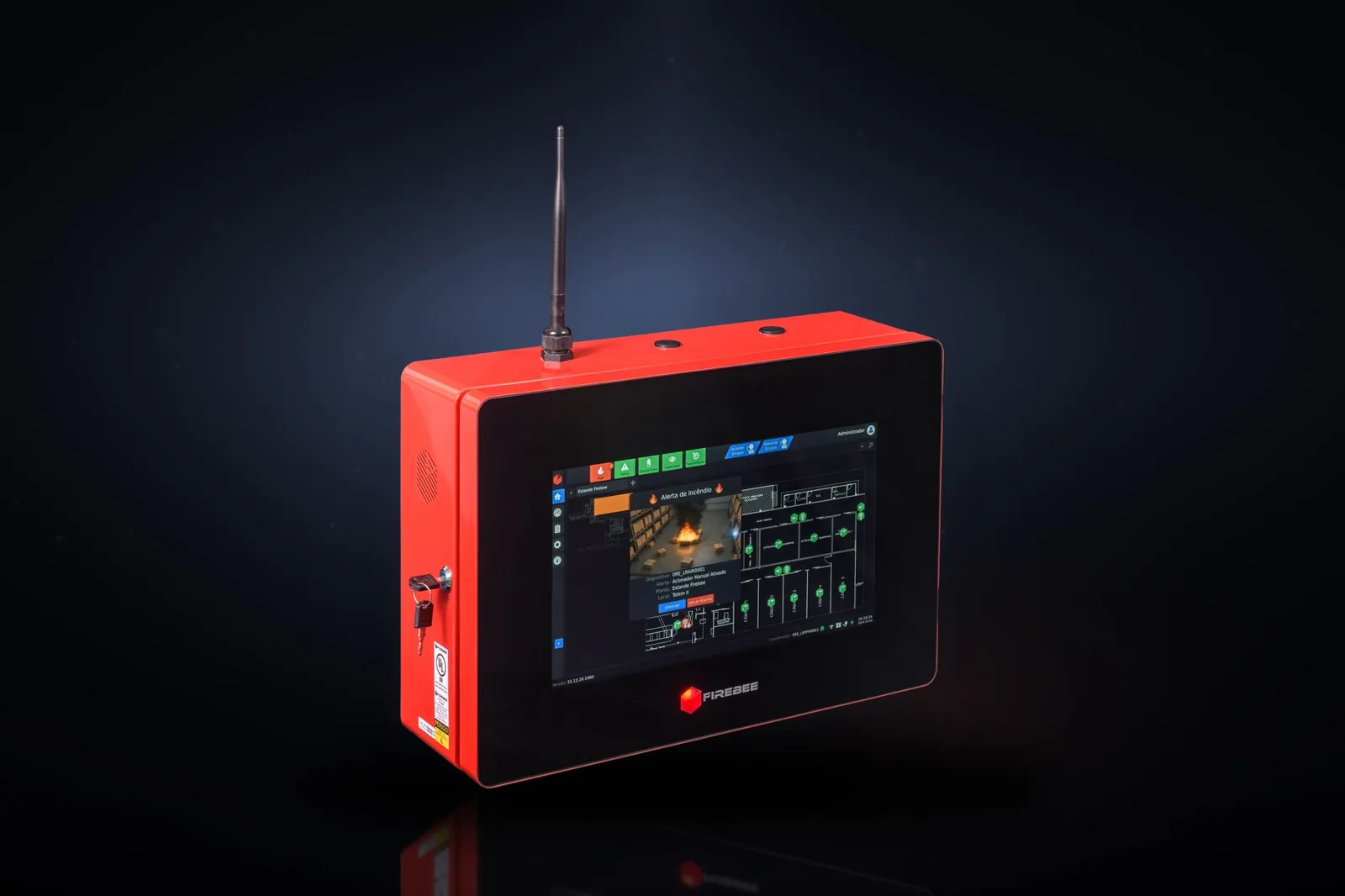

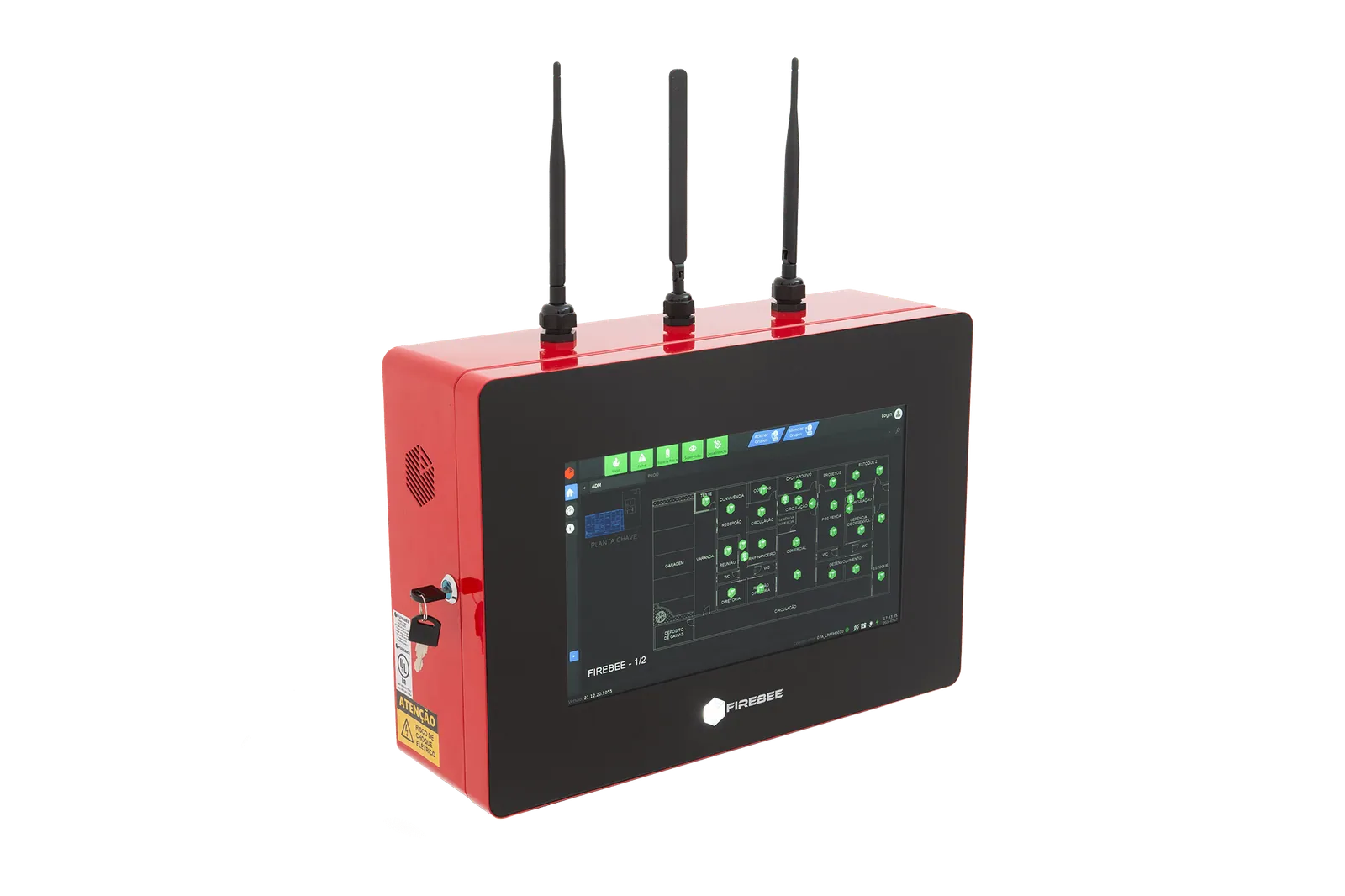

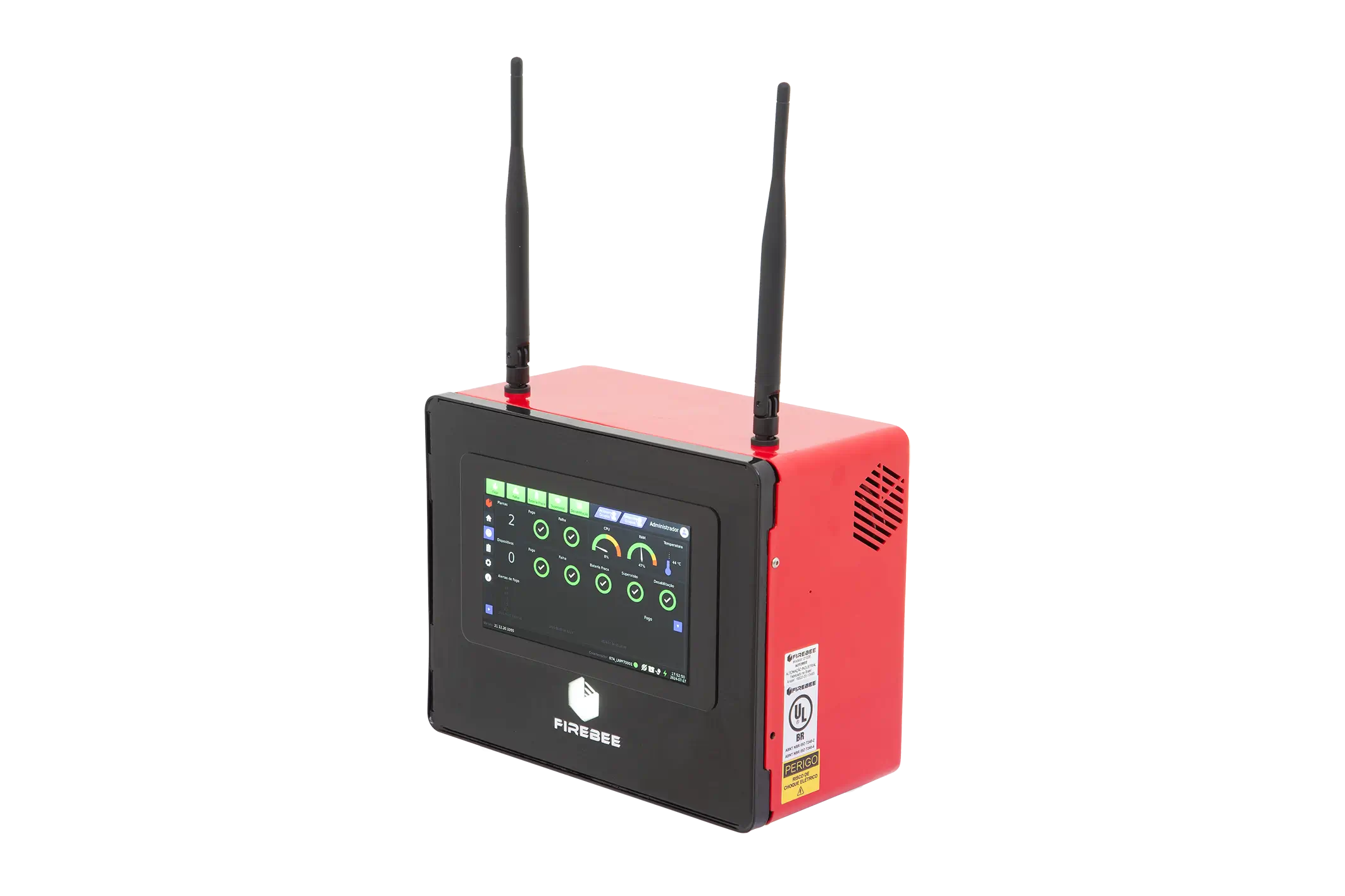

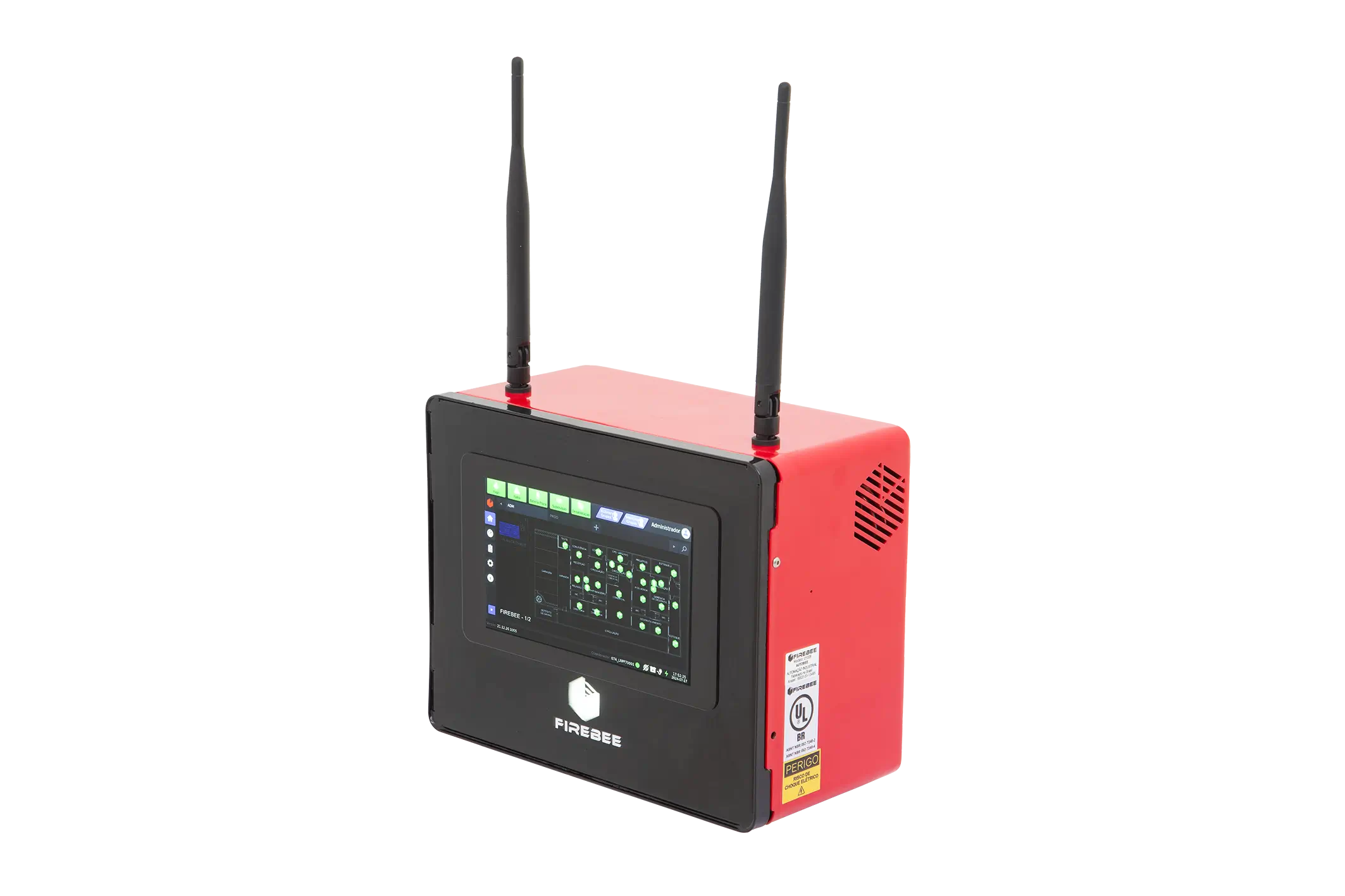

FHT7 — 7" Touch Wireless Panel

The wireless fire alarm and detection systems models 21026, 21028, 21029 and 21030 were developed to facilitate installation, maintenance, and layout changes;

Uses the AC electrical grid as power source, but has internal rechargeable battery for power backup, with 24-hour autonomy, with wireless communication radio with 2.4 GHz operating frequency and ISM band.

Feature a fully optimized system, superior design wrapped in extreme robustness and ease;

High performance, created to enhance user experience with hardware specifically developed for absolute control of Firebee system components;

Device Power Supply Data

:: Electrical Characteristics

Input Voltage: 120 ~ 240 VAC

Minimum Electrical Power: 8 W

Maximum Electrical Power: 14 W

Maximum Electrical Current: 0.14 Amperes

:: Backup Power Supply

Batteries: 01 unit of 12V / 12 Ah

Battery runtime: 24 hours (500 mA)

Average battery life: 24 months

Device Communication Data

:: Coverage Distances

Network Topology: Mesh

Line-of-sight range: 1500 m (1.5km)

Range with obstacles: 50 - 1500 m - Follow calculation rules for projects

Industrial Safety and Topology: ✅

Network with Point Redundancy: ✅

Network Shadowing Rule: ✅

Network with Clustering Mode: ✅

Wi-Fi Protocol: No

Suffers Wi-Fi interference?: No

:: Network Characteristics

Operating Frequency:

Band Type: ISM (Industrial Scientific and Medical)

Signal Modulation: O-QPSK

Channels: 11 to 26 (24 to 26 dedicated)

Antenna Gain: 5dBi

Transfer Rate: 256 Kbps

:: Data Security

Data Encryption: 128 bits

Encryption Mode: CCM mode (counter with cipher block chaining message authentication code; counter with CBC-MAC)

Device binding by MAC Address: ✅

Dedicated recording key: ✅

Unique addressing rule compliance: ✅

:: 12x greater range compared to previous generation (WB) - From 120 to 1500 meters
