Code 21515

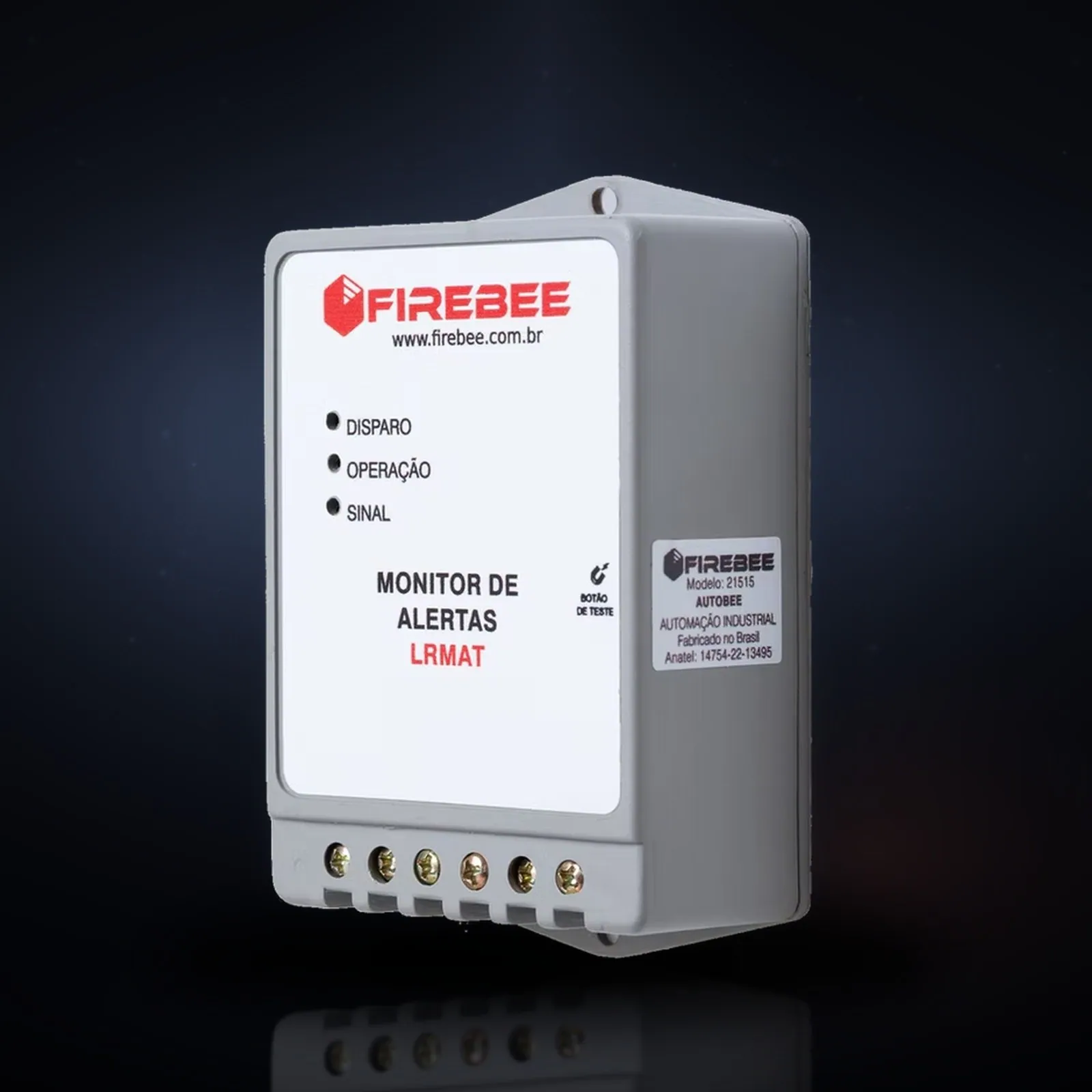

Temperature Alert Monitor — LRMAT
LRMAT — DC temperature monitor.
- Input for temperature sensor
- Thermal alerts integrated into the Firebee panel
- Wireless up to 1.5 km
Description
About this model
LRMAT — Alert Monitor for DC Temperature.
The LRMAG, LRMAF, LRMAC, LRMAD, LRMAB, LRMAT and LRMAS alert monitors were developed to facilitate installation, maintenance, and layout changes.
Using two AA alkaline batteries as power source, with autonomy of 12 to 24 months (depending on the number of tests and activations), with wireless communication radio with operating frequency of 915 MHz or 2.4 GHz and ISM band, it has never been so easy and fast to install alert monitors.
Technical specs
Specifications
- Power Supply
- 2 pilhas alcalinas AA (Energizer E91)
- Autonomy
- 12 a 24 meses (varia com testes/acionamentos)
- Network Topology
- Malha (Mesh)
- Line-of-sight range
- 1500 m (1,5 km)
- Range with obstacles
- 50–1500 m (regras de cálculo por projeto)
- Operating Frequency
- 915 MHz ou 2,4 GHz — banda ISM
- Modulation
- O-QPSK
- Antenna Gain
- 5 dBi
- Transfer Rate
- 256 Kbps
- Encryption
- AES-128, modo CCM
- Security
- Vínculo por MAC · chave de gravação dedicada · endereçamento único
- Range vs. WB generation
- 12× maior (120 m → 1500 m)
