Code 31511

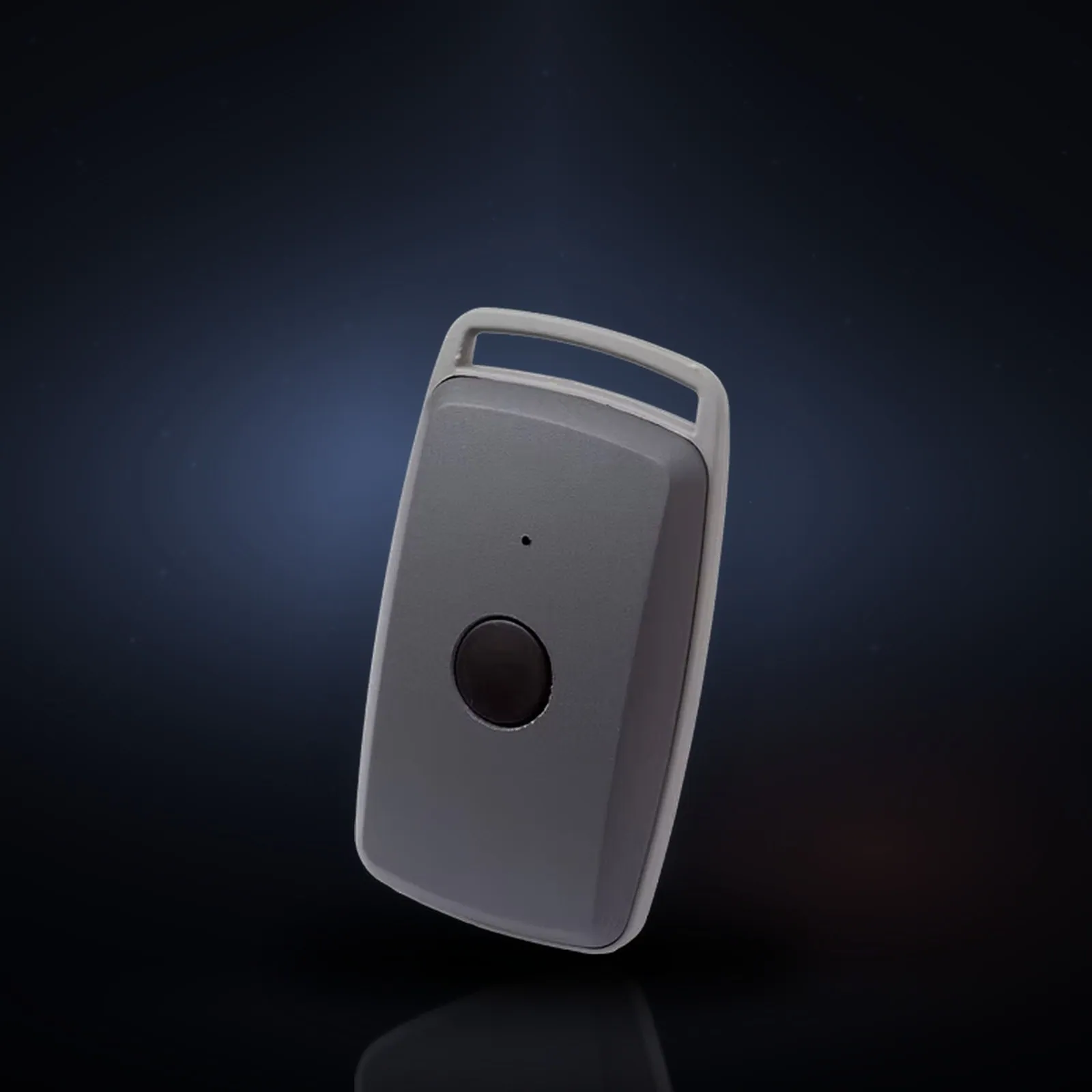

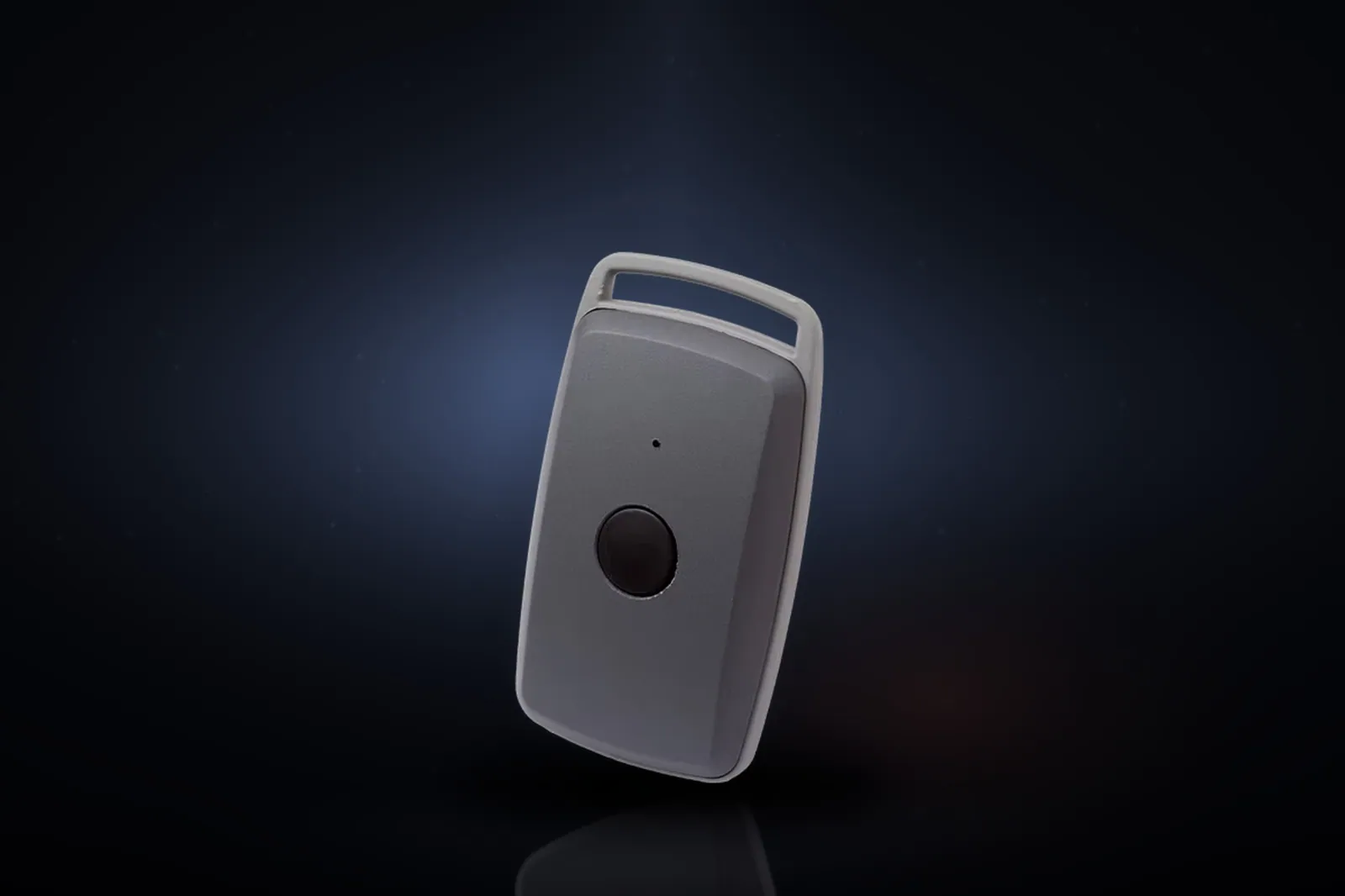

Panic Remote Control 2.0 IP40 — LRPAN
LRPAN — Wireless Panic Button 2.0 IP40 with latest generation ARM.
- Silent or audible wireless panic
- ARM with intelligent battery management and communication algorithms
- Easy installation, maintenance, and layout change
Description
About this model
The LRPAN Panic Button was developed to facilitate use, maintenance, and layout changes.
Using two AA alkaline batteries as power source, with autonomy of up to 24 months (depending on the number of tests and activations), with wireless communication radio with operating frequency of 915 MHz or 2.4 GHz and ISM band, it has never been so easy and fast to use panic buttons.
This device is equipped with latest generation ARM microcontroller, which allows optimal processing of alert information, battery management, and communication through intelligent algorithms.
Technical specs
Specifications
- Protection Rating
- IP40
- Microcontroller
- ARM de última geração
- Power Supply
- 2 pilhas alcalinas AA (Energizer E91)
- Autonomy
- 12 a 24 meses (varia com testes/acionamentos)
- Network Topology
- Malha (Mesh)
- Line-of-sight range
- 1500 m (1,5 km)
- Range with obstacles
- 50–1500 m (regras de cálculo por projeto)
- Operating Frequency
- 915 MHz ou 2,4 GHz — banda ISM
- Modulation
- O-QPSK
- Antenna Gain
- 5 dBi
- Transfer Rate
- 256 Kbps
- Encryption
- AES-128, modo CCM
- Security
- Vínculo por MAC · chave de gravação dedicada · endereçamento único
- Range vs. WB generation
- 12× maior (120 m → 1500 m)
