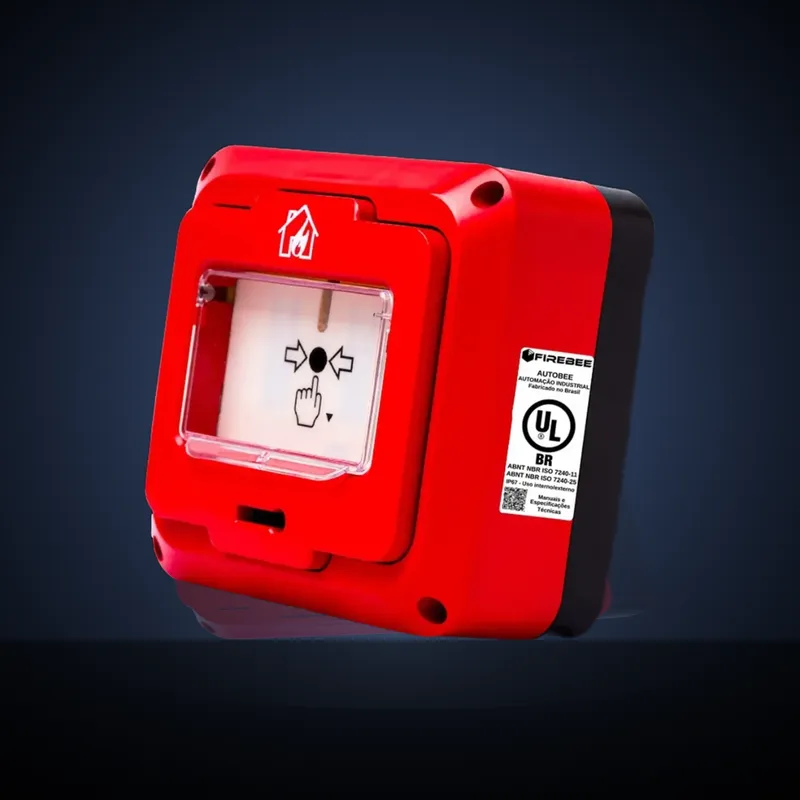

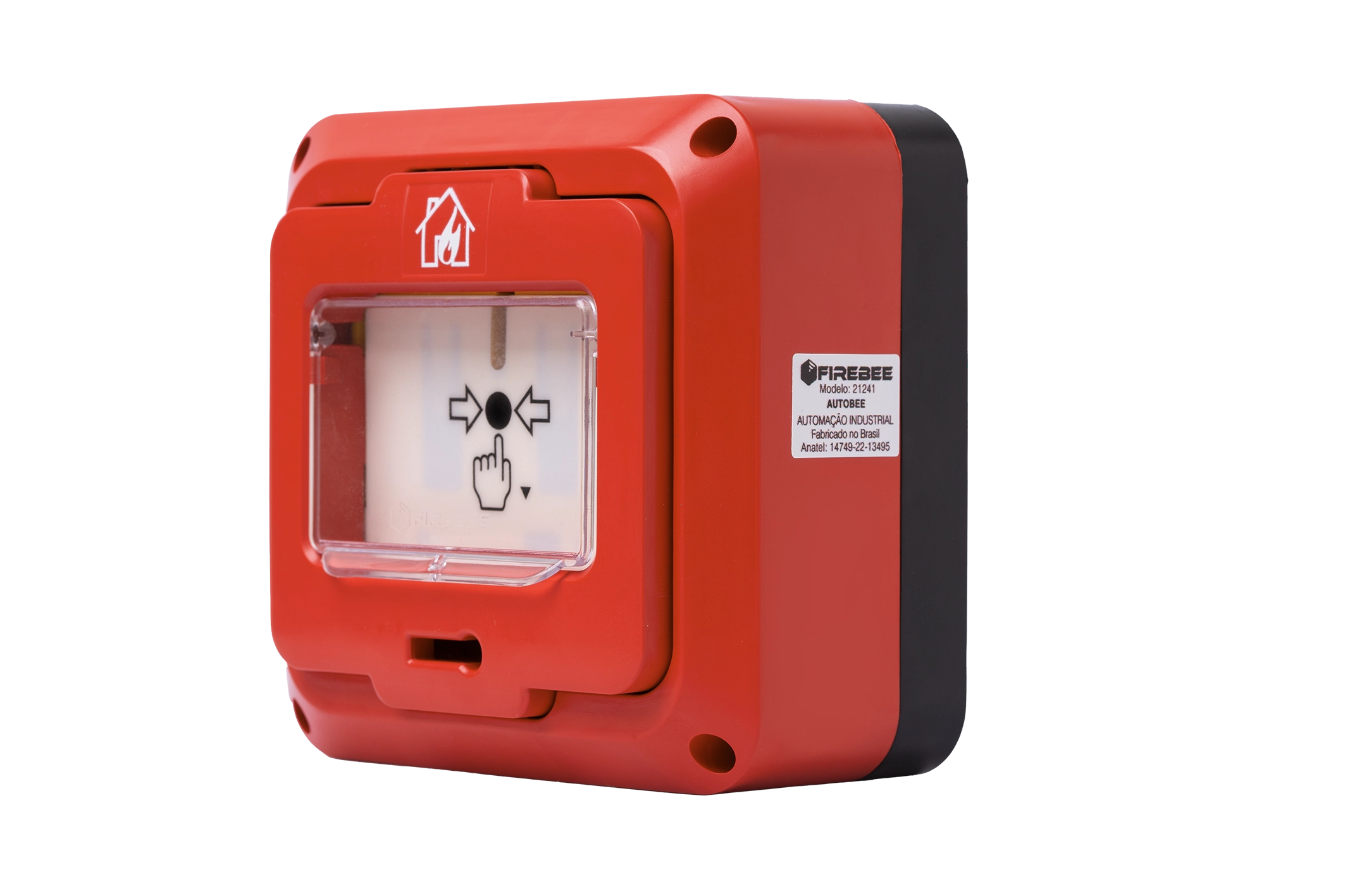

DC IP67 Manual Call Point 2.0
Maximum IP67 sealing — aggressive environments, wet and outdoor areas
About this model
The DC IP67 Manual Actuator functions to act together with Fire Detection and Alarm Systems (SDAI) as a passive line to user inputs of the installation, forwarding to the system the need for monitoring this individually or even in conjunction with others, also known as cross-information.
IP67 protection ensures the ability to install in various indoor and outdoor environments that contemplate this level of classification.
The mobility of being a wireless device also ensures the ability to relocate in the simplest and fastest way possible, even being performed hot, that is, with the equipment in operation.
Device Power Supply Data
Power Source: 2 AA Alkaline Batteries
Model: E91
Brand: Energizer
Device Communication Data
:: Coverage Distances
Network Topology: Mesh
Line-of-sight range: 1500 m (1.5km)
Range with obstacles: 50 - 1500 m - Follow calculation rules for projects
Industrial Safety and Topology: ✅
Network with Point Redundancy: ✅
Network Shadowing Rule: ✅
Network with Clustering Mode: ✅
Wi-Fi Protocol: No
Suffers Wi-Fi interference?: No
:: Network Characteristics
Operating Frequency:
Band Type: ISM (Industrial Scientific and Medical)
Signal Modulation: O-QPSK
Channels: 11 to 26 (24 to 26 dedicated)
Antenna Gain: 5dBi
Transfer Rate: 256 Kbps
:: Data Security
Data Encryption: 128 bits
Encryption Mode: CCM mode (counter with cipher block chaining message authentication code; counter with CBC-MAC)
Device binding by MAC Address: ✅
Dedicated recording key: ✅
Unique addressing rule compliance: ✅
:: 12x greater range compared to previous generation (WB) - From 120 to 1500 meters
